自動磁通測量儀-JTQA320FLUX
1、產(chǎn)品描述

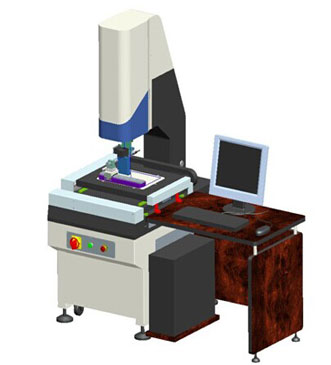

● X.Y. Z-axis motion modules, precision ball screw, Panasonic servo motor ( 3 groups) ●CCD light source, Telecentric lens (1 set)； ●Height detection probe, CCD camera ( 1 set) ,include the software;computer system (1set); ●Measuring gaussian software (1 set) Jaten brand
| |
★★★★Measurement of single magnet need time is 2 second,use fixture can measure multiple at a time.It can be programmed.★★★★
2、原理說明
PRINCIPLE
THEMAIN TASK IS MEASURE THE PRODUCT MAGNETIC FLUX. MEASUREMENT EVERY MAGNETIC FLUX OF PRODUCT.
PUT FIXTURE TO FIX THE PRODUCT. POSITIONING PRODUCT BY CCD. GAUSSIAN PROBE POSITIONING LOCATION OF PRODUCT. WE WILL MEASURE THE LASER HEIGHT OF THE PRODUCT BY LASER. THE SOFTWARE WILL BE THROUGH THE LASER MEASURE THE HEIGHT. SOFTWARE WILL CALCULATED THE EDITED HEIGHT DIFFERENCE. PROBE WILL AUTOMATICALLY MOVED TO THE EDITED HEIGHT. AUTOMATICALLY ACCORDING TO PROGRAM TO MEASURE THE GAUSS OF PRODUCT BY MOVING PLATFORM . IT WILL GIVE JUDGMENT SIGNAL(OK OR NG). ULTIMATELY DETERMINES WHETHER OR NOT THE MEASUREMENT VALUE OF THE PRODUCT CAN REACH YOUR REQUIREMENT.
